Product Name：RGB Tube Light
| Model：TL-150Ultra | Battery：10 . 95V 10Ah | Input：DC 12 . 6V/2 A |
| charging Interface：DC Port | Light color：RGBW | Light Effects：~500 |
Power：30 W
| Tube Length：150 CM/5 FT
| Tube Diameter：40 mm
|
Brightness：Max 800 LM
| Beam Angle：360'
| Charging Time：7-8 Hours
|
Runtime (solid color)：≥7h (Remote control Mode) ≥5h (DMX Control Mode)
| Runtime (RGB Dynamic Mode)：Approx. 15 Hours
| LED Lifespan：50000 Hours
|
Pixel Count：24 Pixels
| Grayscale：256 Levels
| Battery Life：>500 charge cycles
|
LED Quantity：144 pcs
| Transmission Distance：340 m (open Area)
| Mounting：3-Leg Tripod
|
Waterproof Rating：IP65
| Housing Material：ABS+PC
| Storage Temperature：-20℃ 45℃
|
Operating Temperature：℃ 45℃
| Product Weight：1 . 18 KG
| Gyroscope：Built-in
|
Control：Remote / controller
| Supported Software：Art-Net software , DMX Console APP
| Wirelesss DMX control：✓
|
Remote Control：✓
| APP Control：✓
| Battery Capacity：10.95V/10000mAh
|
Battery Life：7-15 hours
| Waterproof Level：IP65
| Brightness (White Light)：800LM(Max)
|
Lighting Angle：360°
| Light Color：RGB+W(CCT)
| Tube Size：Length:150cm/5ft,040mm
|
Packaging Method：Carrying Case
|
|
|
Product Name：Wireless DMX512 Transmitter Controller
Item
| Parameter | Item
| Parameter |
| Model | TL-150Ultra | Battery | 10000mAh, 3.65V |
| Input | 5V/2A | Charging Port | USB Type-C |
| Display | OLED (Black & White) | Power | 10W |
| Charging Time | 5~6 Hours | Battery Runtime | Approx. 5 Hours |
| Battery Life | >500 Charge Cycles | Operating Temp | 0~45°C |
| Waterproof | Not Waterproof | Housing material | Metal Housing |
| Control | RJ45 / Wi-Fi | Protocol | Art-Net / DMX512 |
| Frequency | 2.4 GHz & 5.8 GHz | Number of tube lights supported | 1~30PCS |
| Supported Software | MADRIX 5, SoundSwitch, Avolites Titan, Luminair, etc |
|
|
ZDMDRGB Latest Design TL-150Ultra Wireless DMX512 150cm RGBW 360-Degree Illumination LED Dance Floor Stage Light Rechargeable IP65 DJ Wedding Party Exhibition Light
- 【Professional grade wireless DMX control】 Adopting advanced addressable wireless DMX technology, it is easy to control the lighting and provide (4/5/6/8 CH) channel modes to achieve precise control of LED pixels. Equipped with a wireless DMX transceiver, one device can seamlessly synchronize up to 30 RGB tube lights, Control distance up to 30M, making it perfect for complex DJ equipment setup or stage performances. The user-friendly OLED display clearly presents various settings, helping you easily create professional level light shows for any event.
- 【Multiple Control Methods Supported】 The TL-150Ultra RGBW tube light adopts advanced 5G wireless communication technology. It supports wireless Art‑Net/DMX512 signal control, 2.4G wireless remote control (non‑directional, no need to aim at the tube), DMX console, computer software, mobile console app, and Micro SD card‑based built‑in light effect mode control. A single remote can control all tube lights simultaneously, or be paired separately for independent control, meeting complex DJ lighting needs ranging from family gatherings to stage performances.
- 【360° Illumination & IP65 Waterproof】 The TL-150Ultra delivers vibrant 360° RGBWA pixel-controllable lighting in a rugged, large form factor (tube diameter: 40mm, handle diameter: 50mm, length: 150cm / 5ft). Its IP65 rating makes it ideal for outdoor shoots, stage performances, and wedding lighting. M8 screw ports at both ends allow easy vertical mounting on stands, while the handle-mounted LCD display and four function buttons enable quick power on/off and mode switching.
- 【10000mAh High-Capacity Rechargeable Battery】 This DMX tube light is powered by a high-performance 10.95V/10000mAh lithium battery and comes with a dedicated DC charger (12.6V/2A). Charging takes about 6–7 hours. At 100% brightness, runtime ranges from 7 to 15 hours, depending on the lighting mode (e.g., steady, strobe, fade). The battery level and charging status are clearly shown on the built-in LCD screen. The memory function automatically restores your last lighting settings when powered on. Additionally, you can charge and use the lamp simultaneously, allowing uninterrupted operation during performances.
- 【500+ Lighting Effects & Smart Music Sync】 Unlock over 500 preset lighting effects，with adjustable color, brightness, and speed via remote control, Switch dynamic modes and synchronize multiple tube lights.The wireless DMX transceiver also features a built-in micro SD card, which contains over 50+ pixel-level lighting effects that can be controlled directly via the transceiver. Additionally, it supports uploading and storing your own customized lighting effects onto the micro SD card. The intelligent music-sensing function makes the lights pulse and change with the rhythm of the music, creating an immersive atmosphere for DJ performances, parties, or live shows.

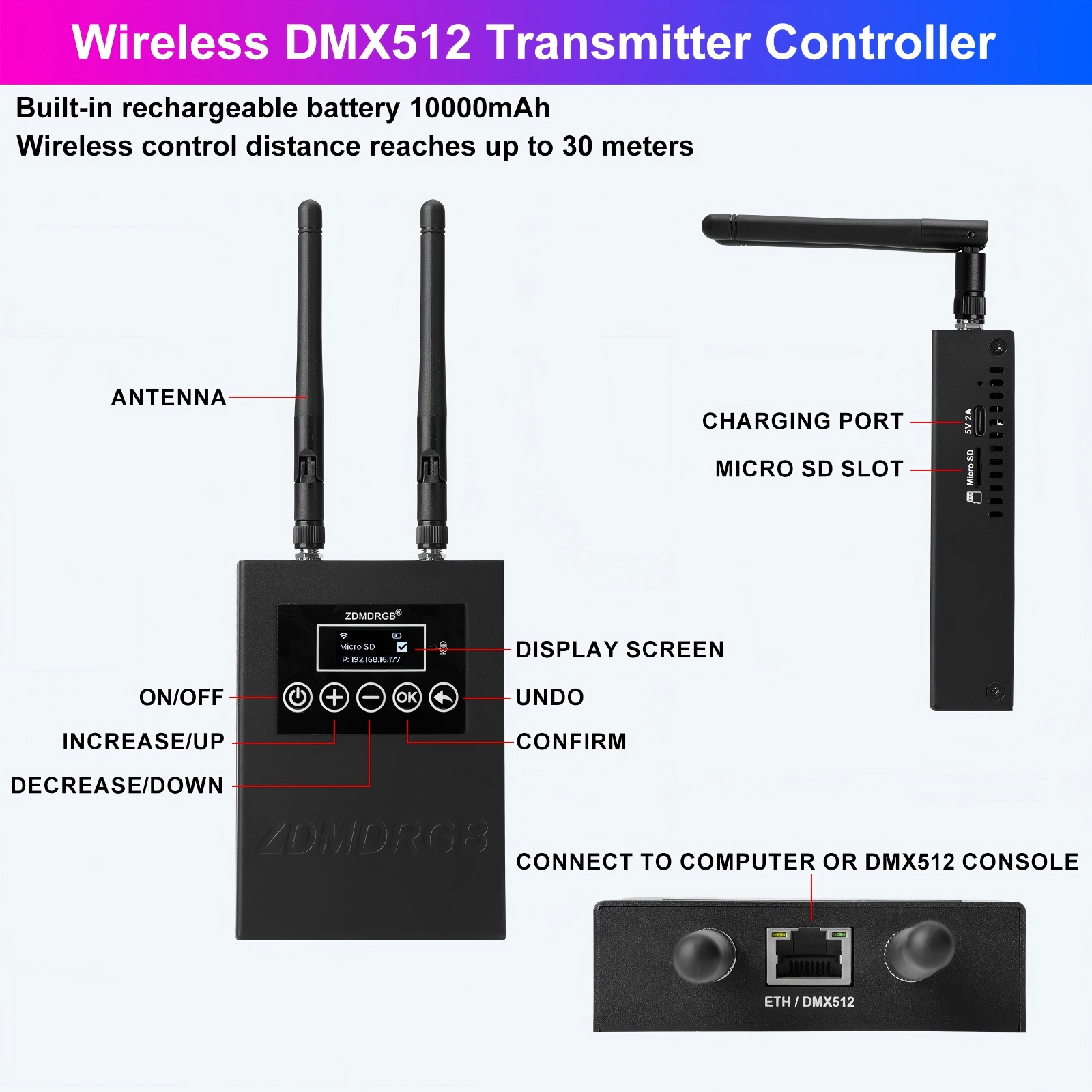

Front panel Buttons and Functions
| Antenna: Extends transmission distance, expands coverage, and enhances anti-interference capability for precise and stable lighting control |
| Display screen: Shows device status, signal strength and parameter information |
| MIC Pickup Hole: Adjusts lighting effects dynamically according to ambient sound rhythm.The MIC Pickup function only works in Micro SD modes |
| Power Button: Press and hold for 2 seconds to power on (display lights up) or power off (display turns off).Automatically saves the current settings upon power-off and restores them on the next power-on |
| ' +' Button: Scroll up through menu options, increase lighting effect parameters (one unit per short press) |
| ' - ' Button: Scroll down through menu options, decrease lighting effect parameters (one unit per short press) |
| OK Button: Confirmation key. short press to select and confirm selection, saving settings and entering the parameter adjustment interface for the selected function |
| Back Button: Exits the current interface and returns to the previous menu level |
| USB Type-C Charging port (5v/2A): For device charging |
| Micro SD Card slot: Supports a Micro SD Card to store built-in and custom lighting effects |
| Entilation Holes: Side-mounted vents ensure effective heat dissipation during prolonged operation, supporting industrial-grade wide temperature environments |
ETH/DMX512 RJ45 port:To control lights via a Pc with the Art-Net protocol, connect one end of an RJ45 network cable to the Pc and the other end to this port,The port receives Ethernet-based lighting control signals
such as Art-Net, enabling wired control of lights through Pc lighting software,when using a DMX Console, connect one end of the supplied XLR-to-RJ45 cable to the DMX console and the other end to this port |
